Product Overview

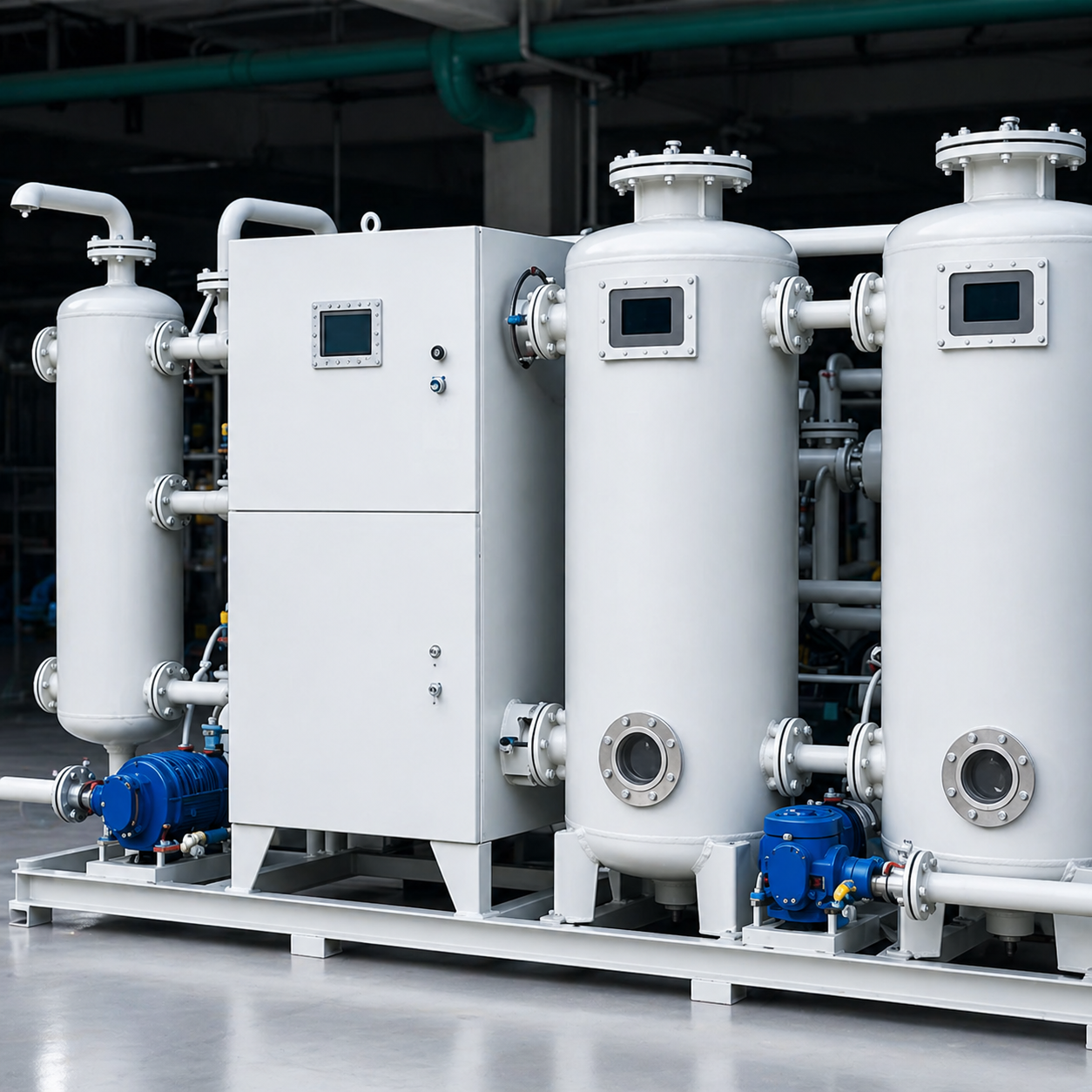

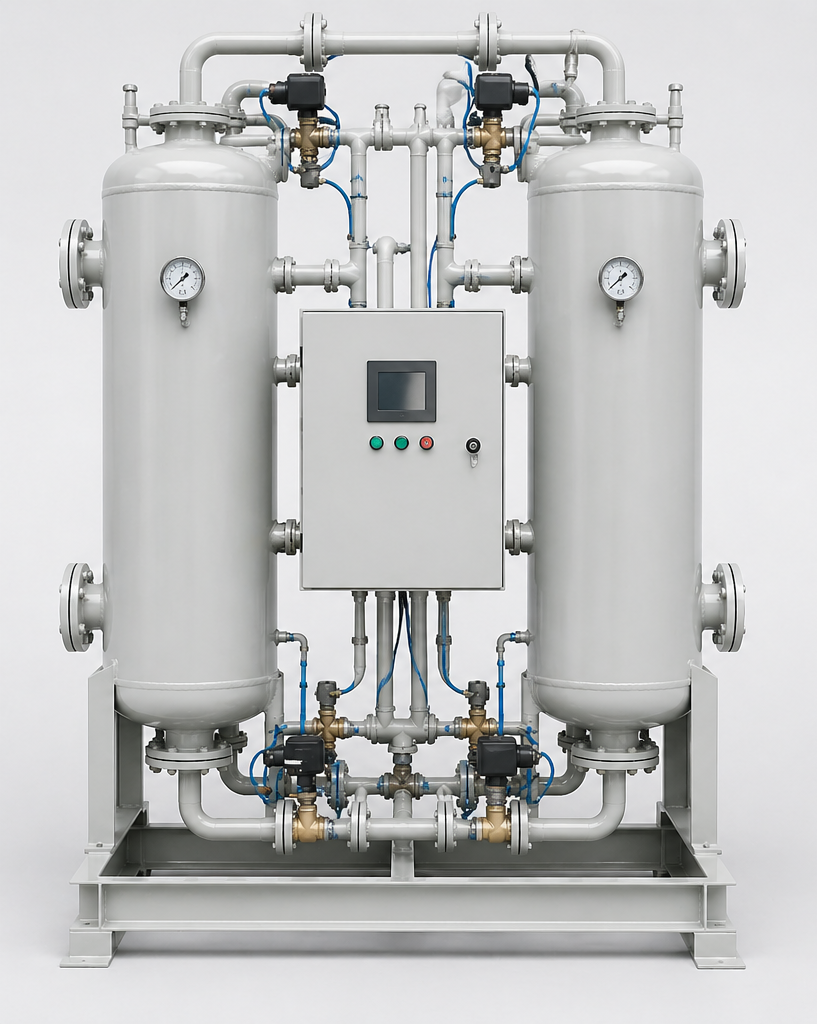

The Heatless Regenerative Desiccant Air Dryer is a twin-tower adsorption system designed to remove moisture from compressed air or gas streams.
It provides a simple, reliable, and cost-effective solution for continuous air drying in industrial applications.
Technology
The system uses desiccant materials such as activated alumina or molecular sieves to adsorb moisture from compressed air.

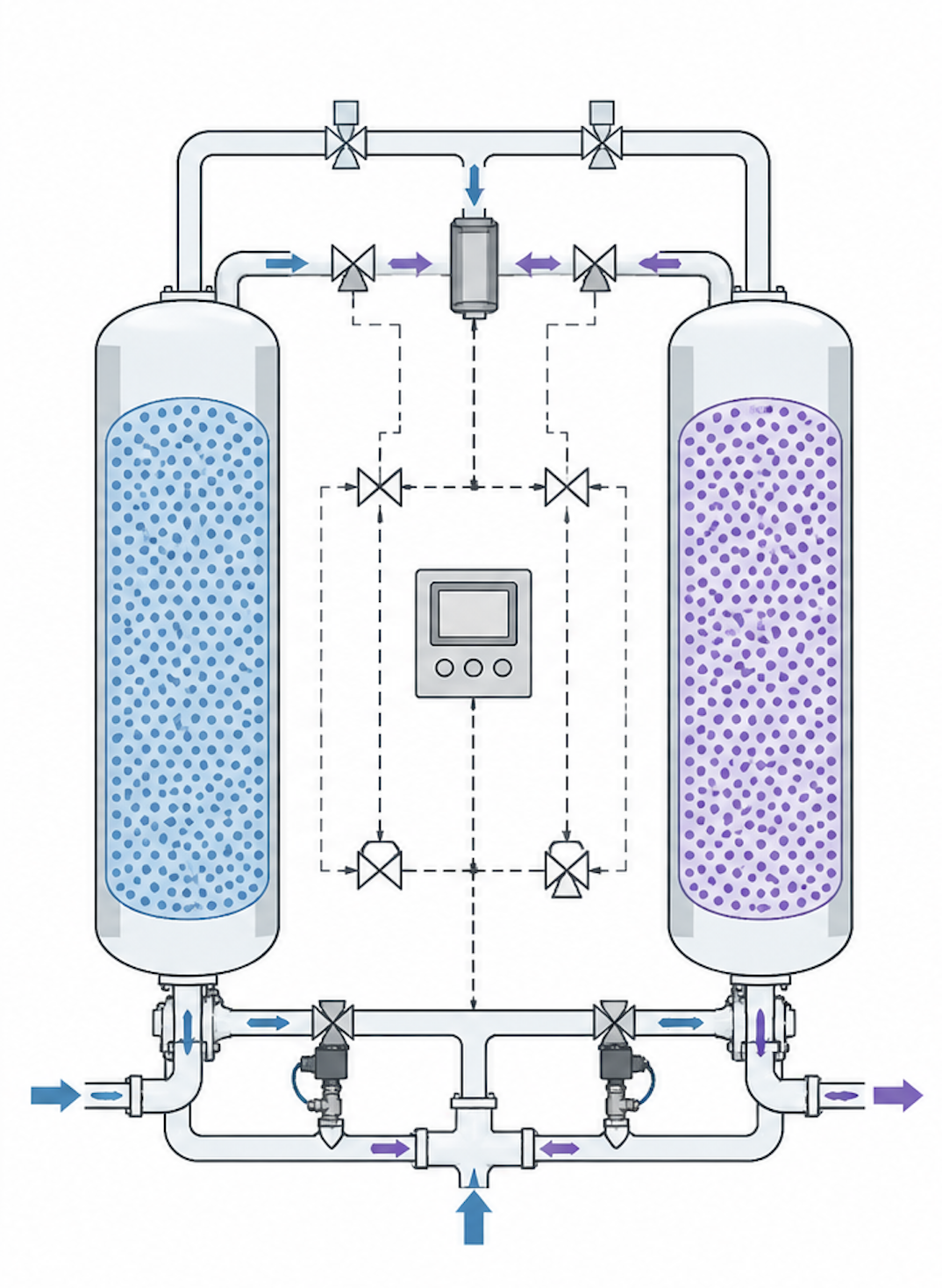

Two towers operate alternately: one tower dries the air, while the other is regenerated using a portion of the dried air without external heating.
Working Cycle
Adsorption → Depressurization → Regeneration → Switching
Key Features
• Dew Point: -40°C to -70°C
• Twin-Tower Continuous Operation
• No External Heating Required
• Simple and Robust Structure
• Fully Automatic Switching
• Low Maintenance Requirements
Advantages
Compared with other drying systems, heatless dryers offer:
• Lower initial investment cost
• Simple operation and installation
• Reliable and stable performance
• No need for external heating source
• Suitable for general industrial applications
Applications
Widely used in:
• Chemical & Petrochemical Industry
• Electronics & Semiconductor Manufacturing
• Food & Pharmaceutical Processing
• Instrument Air Systems
• General Industrial Applications
Customization
The system can be customized based on:
• Required dew point
• Air flow capacity
• Operating pressure
• Installation environment
