Product Overview
The Hydrogen Membrane Separation System is a high-efficiency hydrogen purification solution designed for hydrogen recovery and separation from industrial hydrogen-rich gas streams.

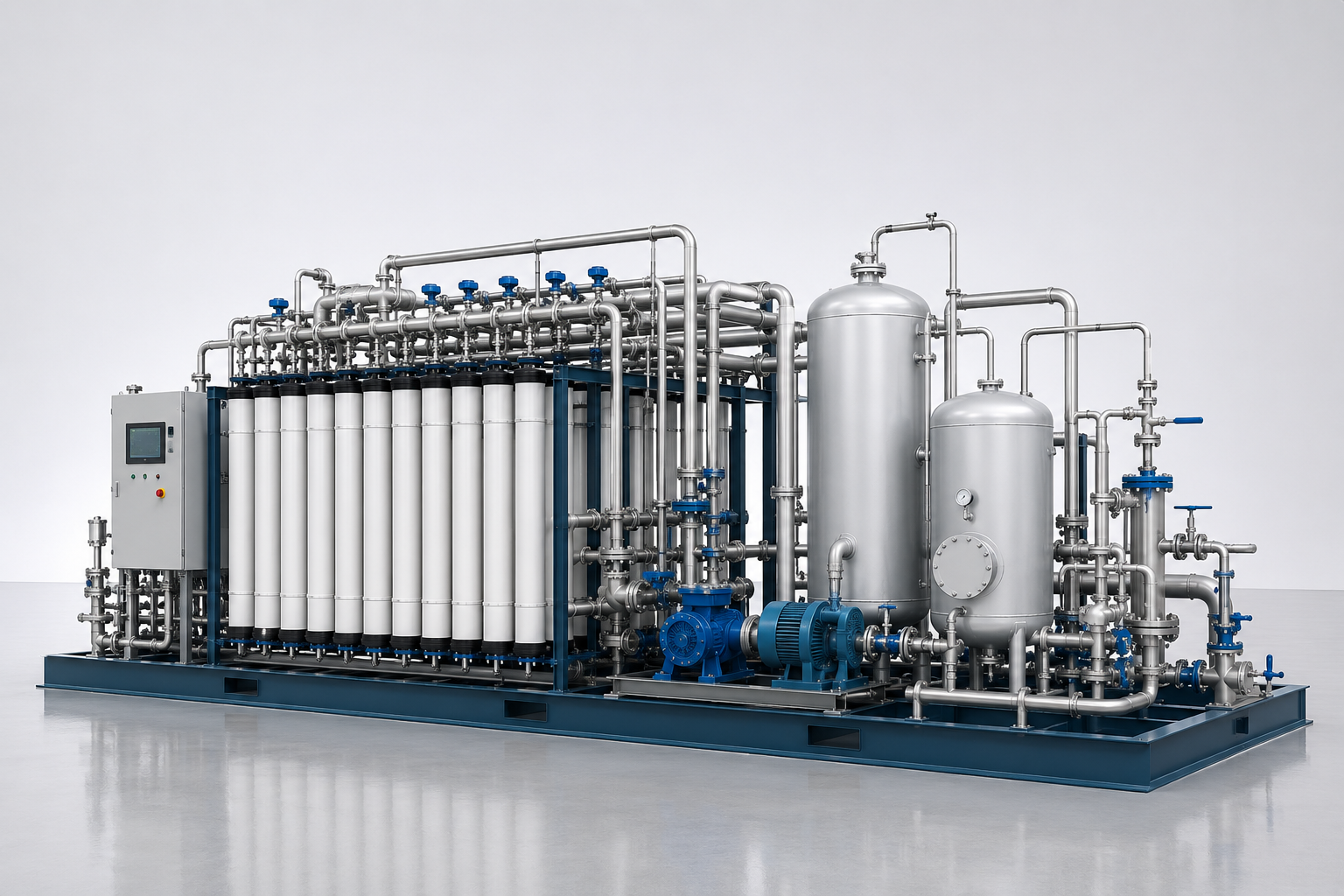

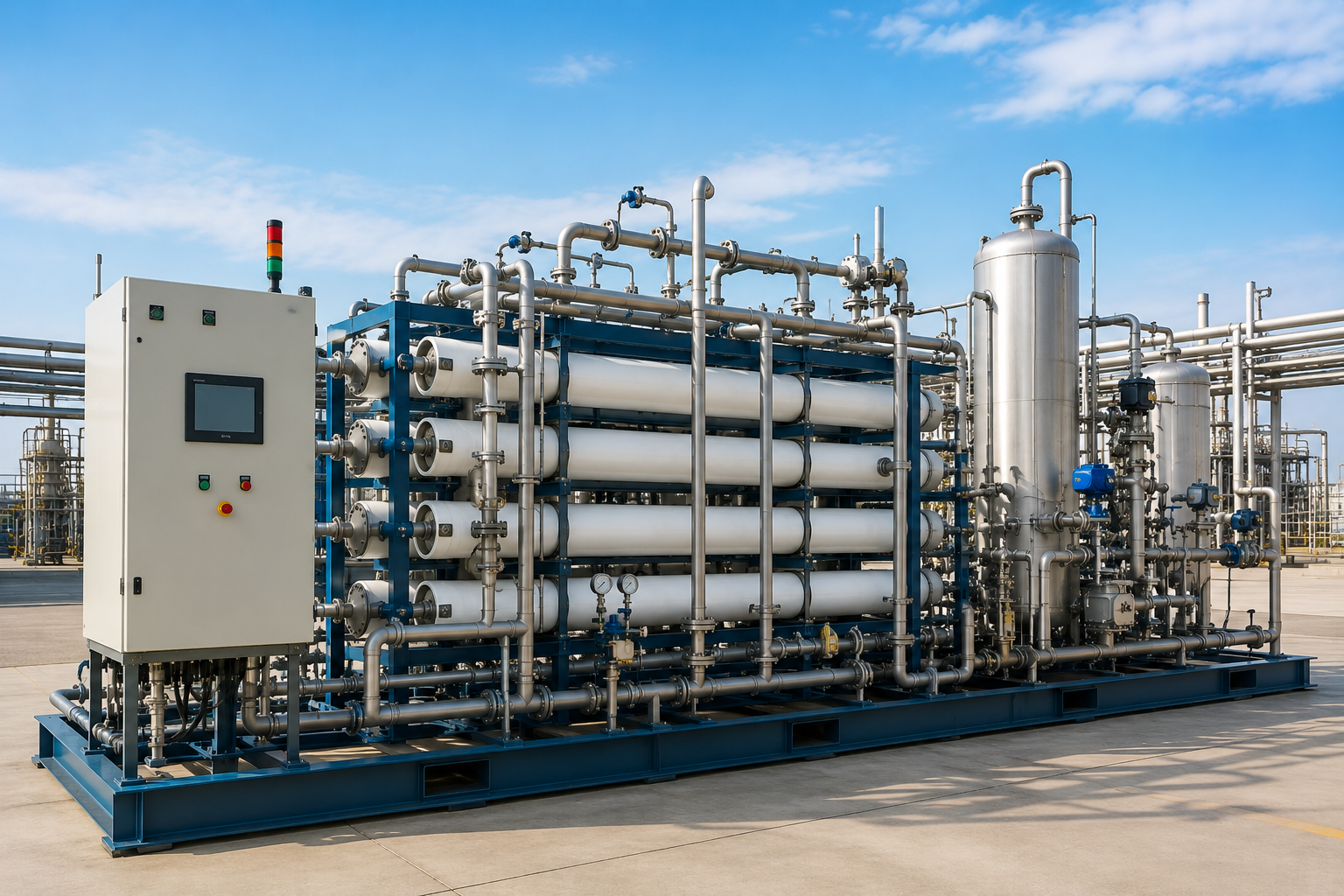

The system integrates gas pretreatment, membrane separation, pressure regulation, and product gas stabilization into a compact skid-mounted configuration suitable for refinery, chemical, hydrogen energy, and fuel cell applications.
Technology
The system utilizes highly selective polymer membrane technology to separate hydrogen from mixed gas streams under pressure differential conditions.
Hydrogen molecules permeate rapidly through the membrane layer due to their small molecular size and high diffusivity, while impurities such as CH₄, CO₂, N₂, and heavier hydrocarbons are retained on the high-pressure side.
Process Flow
Hydrogen-Rich Gas Pretreatment → Pressure Regulation → Membrane Separation → Hydrogen Stabilization → Product Gas Output
Key Features
• High Hydrogen Recovery Efficiency
• Compact Skid-Mounted Design
• Low Energy Consumption
• Fast Start-Up & Flexible Operation
• Continuous Stable Hydrogen Production
• Low Maintenance Requirements
• Modular Capacity Expansion
Advantages
The hydrogen membrane separation system provides:
• Reduced energy consumption compared with PSA systems
• Smaller installation footprint
• Rapid response to hydrogen demand fluctuations
• Stable high-purity hydrogen production
• Flexible system scalability
• Reliable long-term operation
Applications
Widely used in:
• Refinery Off-Gas Hydrogen Recovery
• Natural Gas Reforming Hydrogen Purification
• Fuel Cell Hydrogen Supply
• Chemical Industry Hydrogen Recovery
• Industrial High-Purity Hydrogen Production
• Hydrogen Energy Infrastructure Projects
Automation
The system supports fully automated operation with integrated monitoring for:
• Feed gas pressure
• Membrane differential pressure
• Hydrogen purity
• Product gas flow rate
• System temperature
• Compressor operating status
Engineering & Design
Crida provides customized membrane separation solutions based on hydrogen concentration, impurity composition, operating pressure, purity requirements, and project capacity.
Our engineering team optimizes membrane configuration, pressure differential control, and pretreatment systems to maximize hydrogen recovery and long-term operational stability.
Service & Support
Crida offers complete EPC support including:
• Process Design
• Skid Fabrication
• Installation Guidance
• System Commissioning
• Operator Training
• Preventive Maintenance Services
Looking for an efficient hydrogen purification solution?
Contact our engineering team for customized hydrogen membrane separation systems tailored to your process requirements.
